Problem Statement

  • In gaze target estimation, we predict where a person is looking in a scene.
  • Predicting a person’s gaze target requires reasoning both about the person’s appearance and the contents of the scene.
  • Prior works have developed increasingly complex, handcrafted pipelines for gaze target estimation that carefully fuse features from separate scene encoders, head encoders, and auxiliary models for signals like depth and pose.

Figure 1: Examples of gaze estimation

Motivation

This paper is motivated by the idea that general-purpose visual features from a foundational model-based encoder can simplify the overall pipeline for this task.

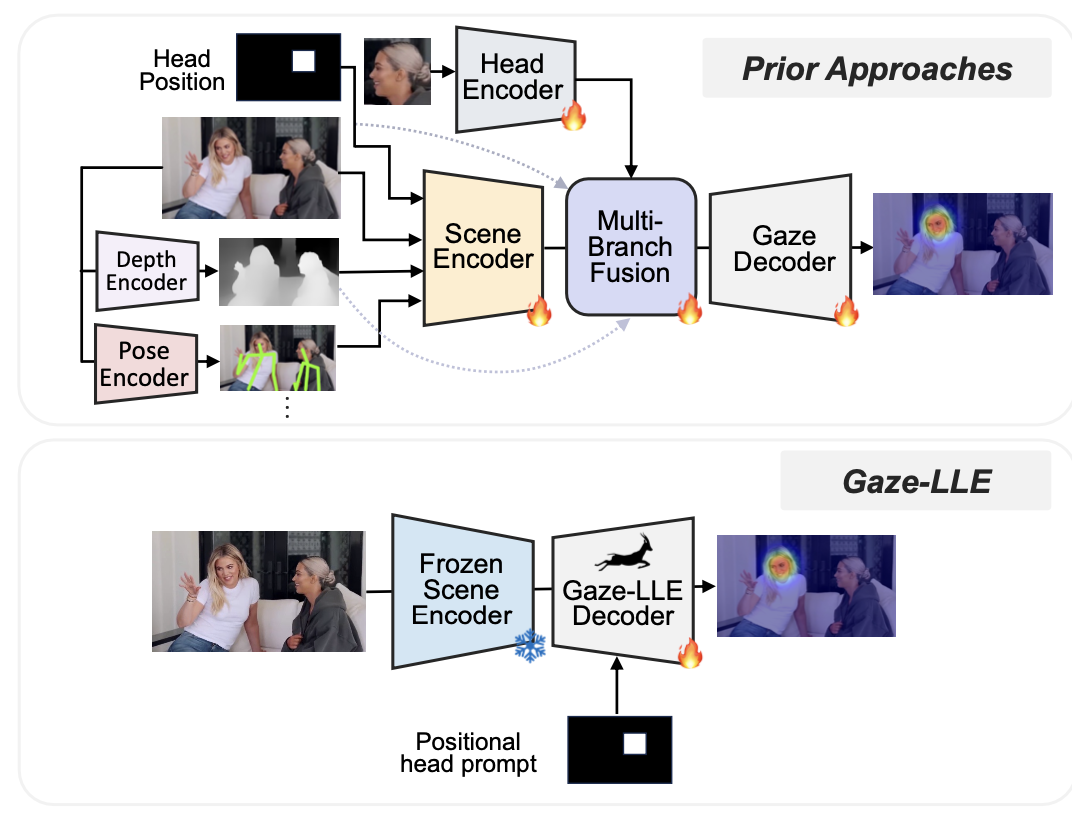

Figure 2: Prior approaches comparison

Introduction

  • Gaze-LLE uses frozen features from the DINOv2 encoder.
  • The method employs a single feature representation for the scene and applies a person-specific positional prompt to decode gaze with a lightweight module.

Model Architecture

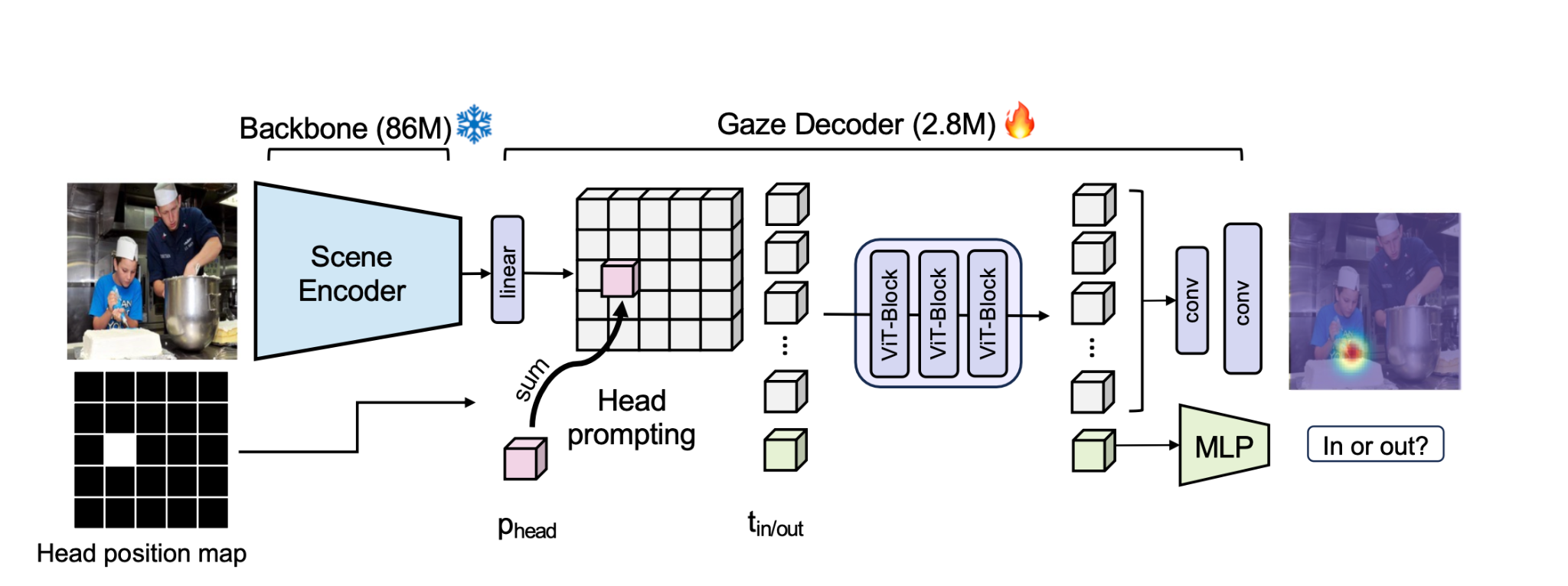

Figure 3: Proposed Model Architecture

  • The Gaze-LLE architecture consists of a frozen, large-scale general-purpose scene encoder and a learned Gaze Decoder module.
  • The gaze decoder performs head prompting to condition outputs on a specific person.
  • It updates the feature representation with a small transformer module and predicts a gaze heatmap, as well as whether the target is in-frame.

Scene Encoder

  • The authors used the pretrained feature extractor $\mathcal{F}$ which is DINOv2 in this case.
  • From $\mathcal{F}(x_{\text{img}})$, a lower resolution feature map of size $d_{\mathcal{F}} \times H \times W$ is obtained.
  • A linear layer to project it to smaller dimension of $d_{model}$ yielding feature map of $x_{\mathcal{F}} \in \mathbb{R}^{d_{\text{model}} \times H \times W}$

Head Position Embedding

  • The authors incorporated head position after the scene encoder.
  • A downsampled, binarized mask $M$ of size $H \times W$ is created from the given head bounding box $x_{\text{bbox}}$ within the extracted scene feature map.
  • A learned position embedding $p_{\text{head}} \in \mathbb{R}^{d_{\text{model}}}$ is added to the scene tokens containing the head.
  • This $M$ mask helps the model understand the ground truth and find the relationship between the target face and output gaze.

The scene feature map $S$ is then:

\(\large(S = x_{\mathcal{F}} + \left( M \cdot p_{\text{head}} \right))\)

Transformer Layers

  • After feature extraction and mask addition, a small learnable transformer module, $T$, is trained.
  • Instead of convolutional layers, the transformer $T$ uses self-attention to process the head-conditioned scene features.
  • The feature map $S$ with the added head position is flattened into a scene token list: $[s_1, s_2, \dots, s_{H\times W}]$, where each $s$ is a pixel-wise token sent to $T$ to determine whether that pixel belongs to the gaze.
  • In the VideoAttentionTarget and ChildPlay benchmark settings, a learnable task token, $t_{\text{in/out}}$, is prepended to the token list.

Our token list is then:

\[\large[\underbrace{t_{\text{in/out}}}_{\text{task token}} \underbrace{s_1, s_2, \dots, s_{H \times W}}_{\text{scene tokens}}]\]
  • Due to the spatial nature of task, authors added the absolute 2d sinusoidal position embeddings $P$ to the scene features before they are input to $T$ , i.e., $T (S + P)$.

Prediction Heads

  • From $T(S + P)$, updated scene features $S’$ and the updated task token $t’_{\text{in/out}}$ are obtained.
  • $S’$ is reconstructed into a feature map of size $d_{\mathcal{F}} \times H \times W$.
  • A gaze heatmap decoder, $D_{\text{hm}}$, consisting of two convolutional layers upsamples the feature map to the output size $H_{\text{out}} \times W_{\text{out}}$ and produces a classification score.
  • A 2-layer MLP $D_{\text{in/out}}$ takes $t’_{\text{in/out}}$ and outputs a classification score indicating whether the queried person’s gaze target is in-frame or out-of-frame.

Loss Functions

  • In this method they using two loss functions one for each token prediction and one is for $t’_{in/out}$ .both the loss functions are cross entropy loss.
\[\large{\mathcal{L} = \mathcal{L}_{\text{hm}} + \lambda\mathcal{L}_{\text{in/out}}}\]
  • $\mathcal{L}{hm}$ is pixel-wise binary cross entropy loss and $\mathcal{L}{in/out}$ binary cross entropy loss for the $in/out$ prediction task weighted by $λ ∈\mathbb{R}$.
  • The supervisory signal is an $H_{out}×W_{out}$ heatmap constructed by placing a $2D$ Gaussian distribution with $σ = 3$ around each ground truth $(x, y)$ gaze annotation.
  • The backbone F is frozen during training. Our model with a ViT-B backbone has $∼2.8M$ learnable parameters—significantly fewer than all prior works.

Results

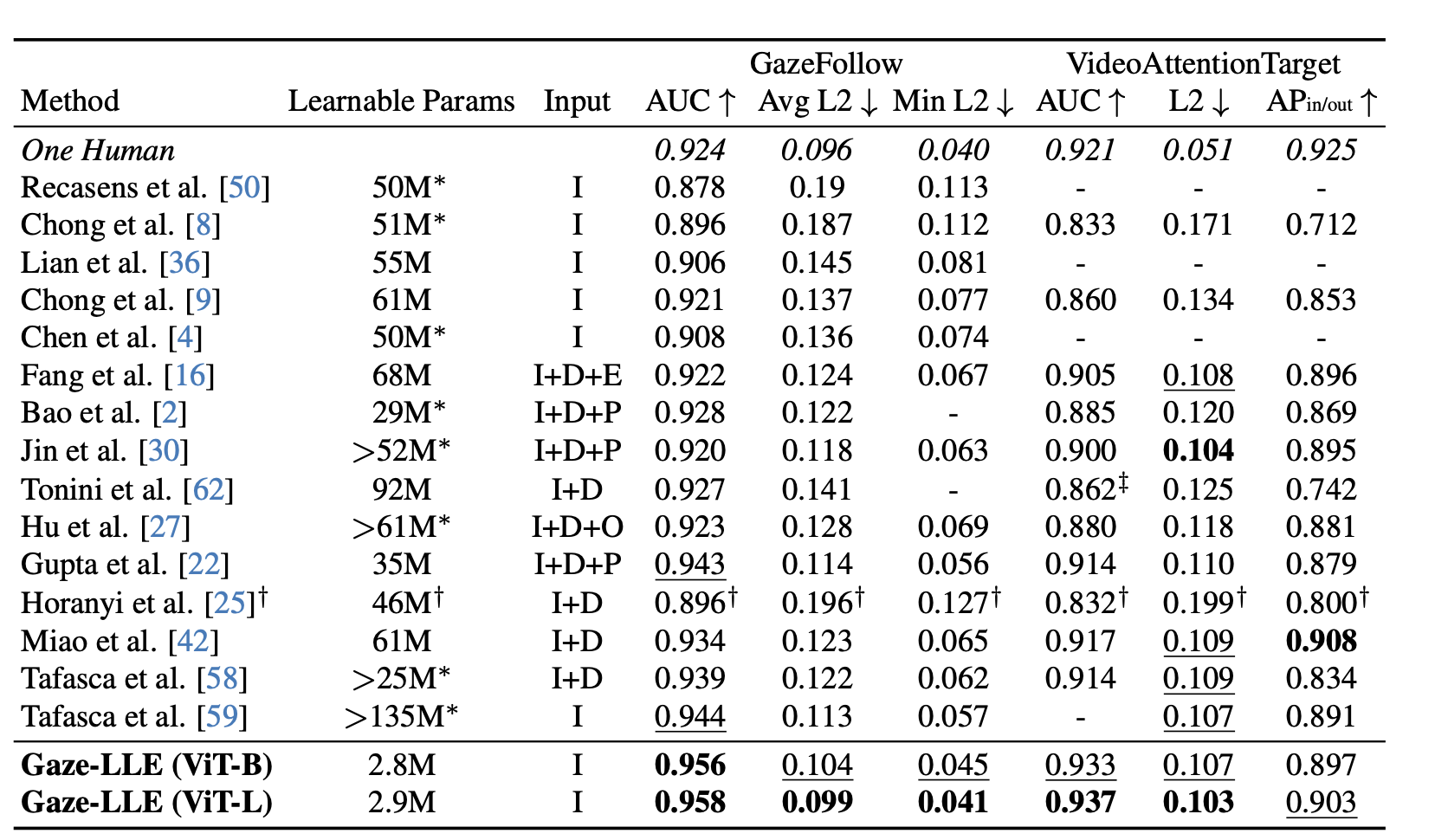

Table 1: Gaze target estimation results on GazeFollow and VideoAttentionTarget. report the number of learnable parameters for each model, and if auxiliary models are used for inputs: I is image, D is depth, and P is pose, O is objects, and E is eyes.

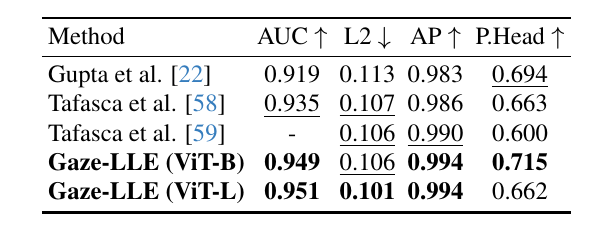

Table 2: Gaze target estimation results on ChildPlay.

Figure 4: Visual results of proposed method

Ablation Studies -

Figure 5: Showing the effect of injecting head information earlier and later

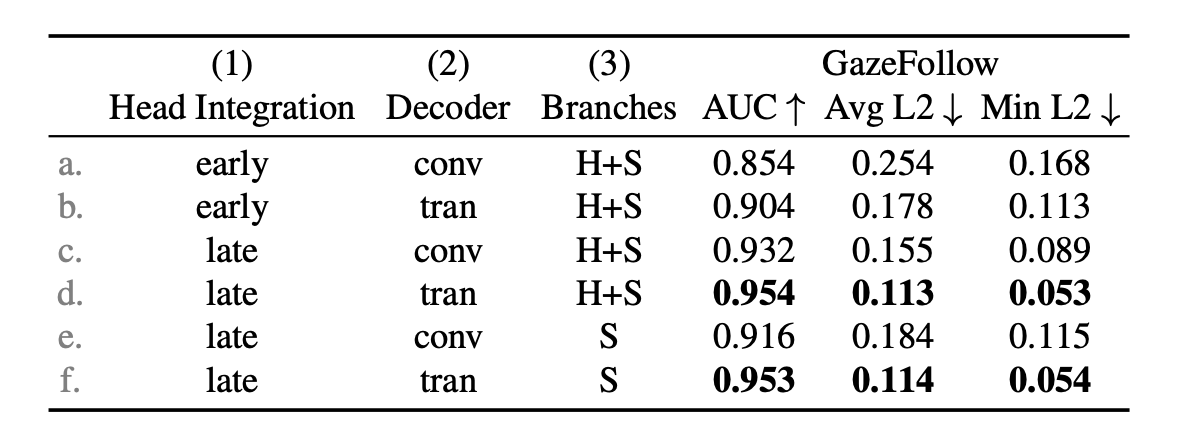

Table 3: Shows the design choices across 3 axes: (1) early vs. late head integration, (2) convolutional vs. transformer decoder, and (3) using a head & scene branch (H+S) vs. a scene branch alone (S). Row a is the setting most similar to prior work. Conversely, Author's develop our final Gaze-LLE design from row f.

Where should inject the head position?

  • The head position is crucial for determining gaze.
  • Prior works provide head position as an extra channel to the scene branch (i.e., RGB + head position), requiring the scene encoder to learn its usage during finetuning.
  • Simply concatenating the head position channel after extracting DINOv2 features boosts performance significantly (Table 3: a vs. c).

Do we need a head branch?

  • Prior works use a separate encoder for head crops, which helps understand gaze direction.
  • The authors hypothesize that DINOv2 already captures gaze direction in its representation.
  • Performance with and without a head branch is nearly the same when using a transformer-based decoder (Table 3: d vs. f).

How should we decode the DINOv2 features?

  • Prior works use convolutional stacks to decode heatmaps.
  • Comparing a 6-layer convolutional stack to a 1-layer transformer with a 2-layer convolutional decoder, the transformer performs better due to its ability to use global information (Table 3: c vs. d).

Using DINOv2 in prior Works

Using DINOv2 directly to prior work does not lead to good results, as we can see in the table below.

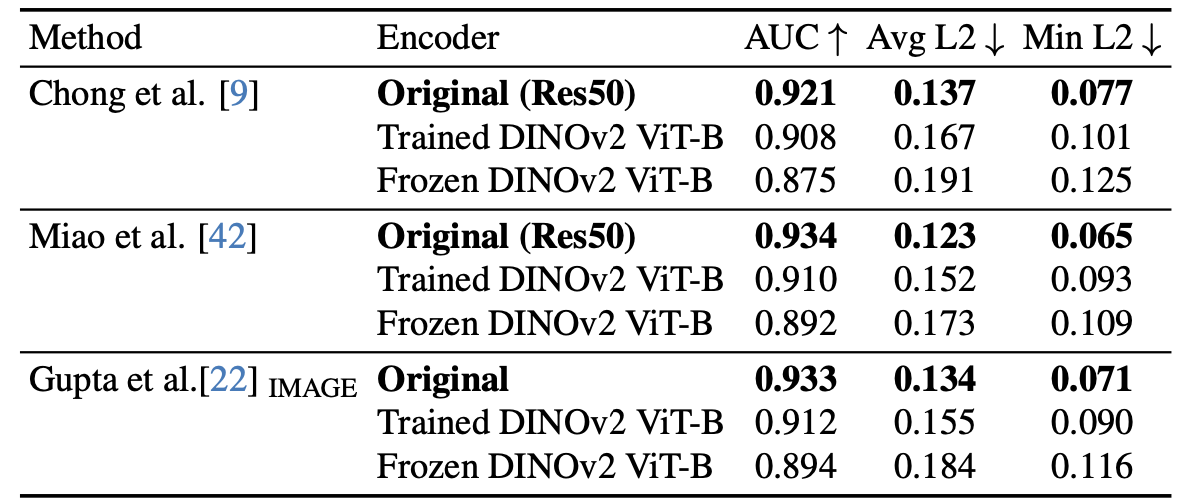

Table 4: Author replaced the scene encoder in 3 existing open source methods with the DINOv2 ViT-B backbone and evaluate on GazeFollow.

Conclusion

  • The proposed method offers a streamlined approach with fewer components to solve a challenging problem while achieving state-of-the-art results.
  • Head prompting innovatively learns the binary mask and the relationship between ground truth and the target face.
  • The authors demonstrated that a foundational model can achieve state-of-the-art results without additional training.
